2400 Watt 48 Volt Polycrystalline Solar Cabin Kit

2400 Watt 48 Volt Polycrystalline Solar Cabin Kit
stars- reviews 2400 Watt 48 Volt Polycrystalline Solar Cabin Kit item reviews
SKU: RNG-KIT-CABIN2400P-NONE-BC
$3,851.00

Availability:

Please allow up to 1 to 2 business days for processing and 3 to 5 business days for shipping.



Description

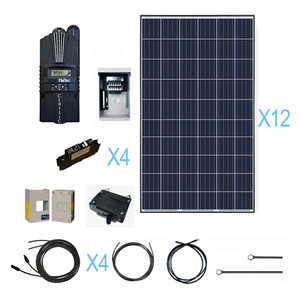

A Renogy Solar Cabin Kit is a great power solution for any off-grid cabin or work shed. Unlike traditional power generators, solar panels silently recharge batteries and rely on a completely renewable energy source. The Renogy 2400W Polycrystalline Cabin Kit comes with a MidNite Classic 150 MPPT Charge Controller, which includes a wide range of features such as remote monitoring. These innovative features give the user greater control over their system. The kit also includes an industry favorite — MidNite Solar MNPV6 Combiner Box. The MNPV6 is rated for outdoor use and allows for later system expansion. Whether you're preparing for a Vacation in your off-grid cabin, or powering your work shed, the Renogy Cabin Kit can offer you all the efficiency and power you need to stay independent from the grid!

Note: Unirac certified railing available as an add-on option. Unirac is a leading manufacturer of solar racking in North America, delivering the highest standards for fit, form, and function.

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or email sales@renogy.com.

Key Features

Versatile
  • Ideal for large off-grid systems such as remote cabins
  • Works with off-grid residential and commercial rooftop systems
  • The MidNite Classic allows you to stack multiple charge controllers, giving you more options for expansion
Safe
  • Newly added MidNite MNEDC- Quad houses included MNEDC100 breaker which acts as a DC disconnect for protection of your battery bank and charge controller
Reliable
  • EL tested solar modules; no hot-spot heating guaranteed
  • Authorized UL 1703 photovoltaic modules and panels
  • Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
Efficient
  • Excellent performance in low-light environments
  • With the MidNite Classic charge controller, you can monitor your system remotely through a user's local network or via midnitesolar.com

Renogy 270W Polycrystalline Solar PanelMidNite Classic MPPT Charge Controller- 150
Maximum Power: 270W Nominal Battery Voltage: 12V Through 72V
Optimum Operating Voltage (Vmp):31.40 V Maximum Output Current: 96A/12V, 94A/24V and 86A/48V Battery
Optimum Operating Current (Imp): 8.60A Maximum Stand-By Self-Consumption (12V): 2.8W-4W
Maximum System Voltage: 1000V DC Power Conversion Efficiency: 98% (Typical system)
MidNite Solar 15A Circuit BreakerMidNite Solar Combiner Box- MNPV6
Box Size: 13mm wide Size: 13.5 x 8 x 3.5 in.
Weight: 0.25 lbs. Box Size: 14 x 9 x 4 in.
  Weight: 4 Lbs
MidNite Solar Panel Mount Breaker MNEDC100MidNite Solar MNEDC- Quad Enclosure
Listed for 120Vac and 150Vdc Environmental Rating: Type 1 (Indoor)
Breaker Torque Value:30 In-Lbs (3.4NM) Bus bar rating: 180A
Environmental Rating: Type 1 (Indoor) Max. AC Voltage: 240Vac
Listed for US & Canada Max. DC Voltage: DC up to 300Vdc
Renogy 40ft 10AWG MC4 Adaptor Kit (A Pair)Renogy 16ft 4AWG Tray Cable (Single)
Length: 40ft Length: 16ft
AWG: 10 AWG: 4
Rating Voltage: 600/1000V Rating Voltage: 600/1000V
Temperature: -40°F to +185°F Temperature: -40°F to +185°F
Renogy 8ft 8A Stranded Copper Wire Solar Cable
Renogy 8ft 4A THHN Copper Wire Solar Cable (Single)
Length: 8ft Length: 8ft
AWG: 8 AWG: 4
Rating Voltage: 600/1000V Rating Voltage: 600/1000V
Temperature: -40°F to +185°F Temperature: -40°F to +185°F
Renogy 4AWG Tray Cable Double Ring (Single)
Length: 8ft AWG: 4


Warranty Information

Panels

25-year transferable power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty

Accessories 1-year material warranty


Certification


Please click the links below to download the manuals:
MidNite Classic MPPT Charge Controller
MidNite Combiner Boxes
