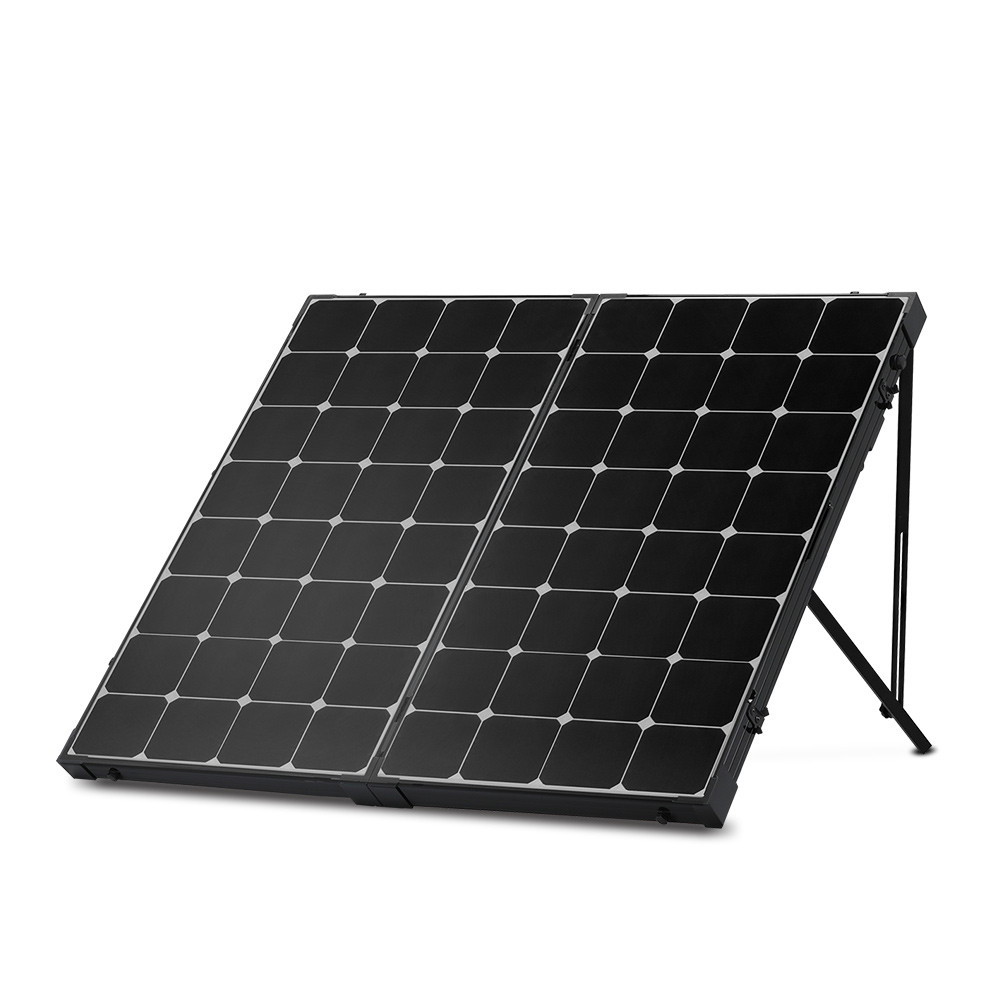

More power with the same portability! The Renogy 200W Eclipse Suitcase uses our premium Eclipse panels to give you the most efficiency when charging your portable appliances. Featuring the same cells as our very popular 100W Eclipse Solar Panel, you will have the highest efficiency Renogy has to offer! Improved leg adjustments allow you to tighten, loosen, and angle your suitcase legs with ease! Keep the adventure going with 200 Watts of power anywhere you go!
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or email firstname.lastname@example.org
- Excellent performance in low-light environments.
- Two 100 watt Eclipse Solar Panels
- Adjustable, corrosion-resistant aluminum stand as well as a heavy duty handle and latches for longevity.
- Protective casing
- Compatible with gel, sealed, and flooded batteries.
Renogy 200 Watt Eclipse Solar Suitcase w/o Controller
|Renogy 200W Foldable Solar Suitcase || |
|Maximum Power at STC: 200W
||Maximum System Voltage: 600VDC(UL)
|Open-Circuit Voltage: 21.2 V
||Optimium Operating Voltage: 17.7V
|Short-Circuit Current: 11.72A
||Optimium Operating Current: 10.35A
|Folded Dimension: 41.3 x 21.1 x 3.1 inches
||Weight: 33.60 lbs
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
3-year material and workmanship warranty
1.What do I need to complete my off-grid solar power system ?
A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3. Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
4. How should I connect solar panels in my electrical circuit (series vs parallel)
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
5. How many solar panels do I need ?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watt, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
