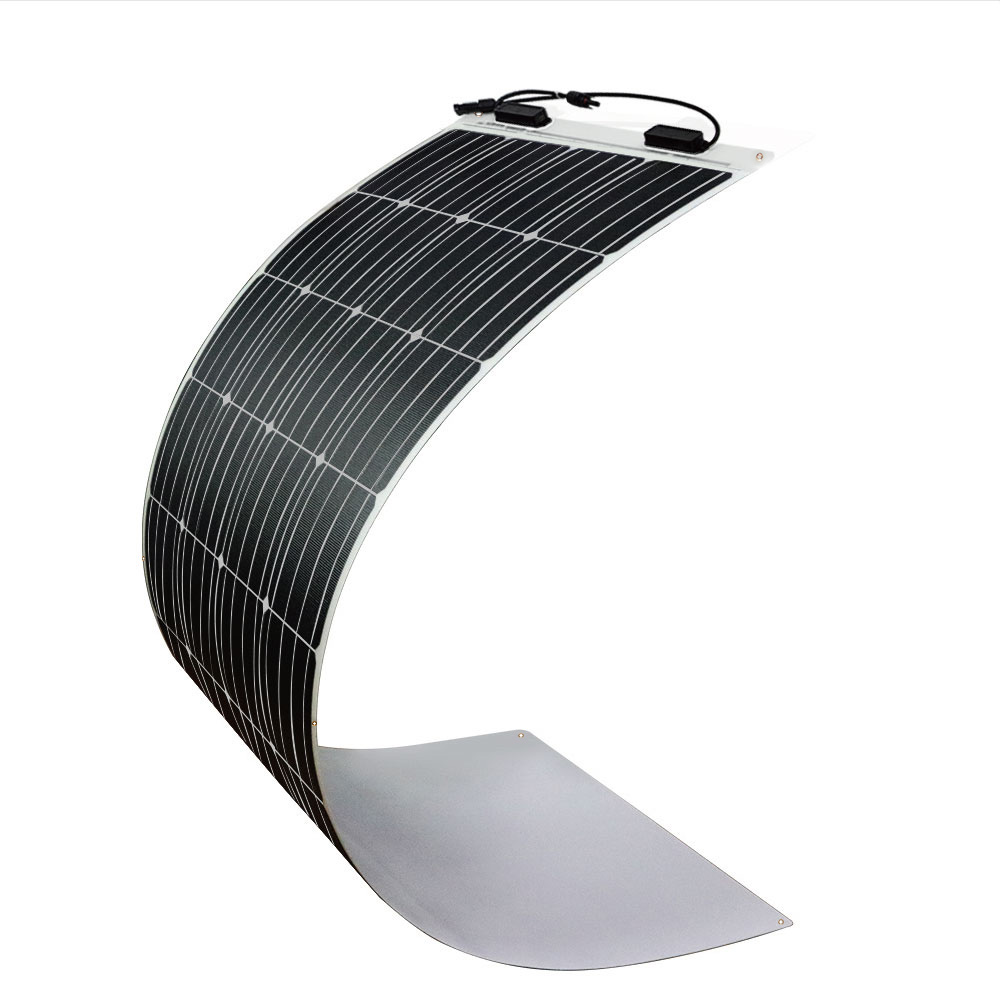

Meet the Renogy 160W Flexible Solar Panel, the culmination of cutting-edge technology and precision. This ultra-lightweight panel can achieve up to an incredible 248-degree arc of flexibility thanks to advanced solar cell technology and lamination techniques. At 6.2 pounds, this panel weighs 70% less than its standard counterpart and is less than 5% as thick. Easy to transport and install, this solar panel can be affixed to uneven surfaces, making it ideal for airstreams, campers, and boats. The ultra-lightweight design allows for incredibly simple storage, transport, and installation.
Mounting Recommendation: Modules may be mounted using silicon structural adhesive on the backside of the panel. For detailed installation methods, please consult a local contractor for guidance.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or email firstname.lastname@example.org.
Key FeaturesExtremely Flexible
- With a flex range of up to 248 degrees, this panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream
- Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze
- Discreet and thin, the Renogy 160W Lightweight Panel is only a tenth of an inch thick. Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup
- Rigorously tested, the 160W panel is designed to withstand extreme wind of up to 2400Pa and snow loads of up to 5400Pa
Renogy 160W Flexible Solar Panel
|Solar Cells: 36 Monocrystalline cells||Junction Box: IP 68|
|Panel Dimensions: 59.2x26.5x0.08 In||Weight: 6.2 lbs|
|Cables: 12 AWG, 17.7 In(Negative Cable), 5.9 In(Positive Cable)||Connectors: MC4 Connectors|
|Maximum Power at STC*: 160 W||Cell Efficiency: 21.0%|
|Optimum Operating Voltage (Vmp): 19.1 V||Optimum Operating Current (Imp): 8.38A|
|Open-Circuit voltage (Voc): 23 V||Short-Circuit Current (Isc): 8.88A|
|Maximum System Voltage: 600 VDC||Maximum Series Fuse Rating: 20 A|
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
5-year material and workmanship warranty
