Looking for the perfect off-grid product? Well look no further! Renogy is excited to bring you solar and portability.

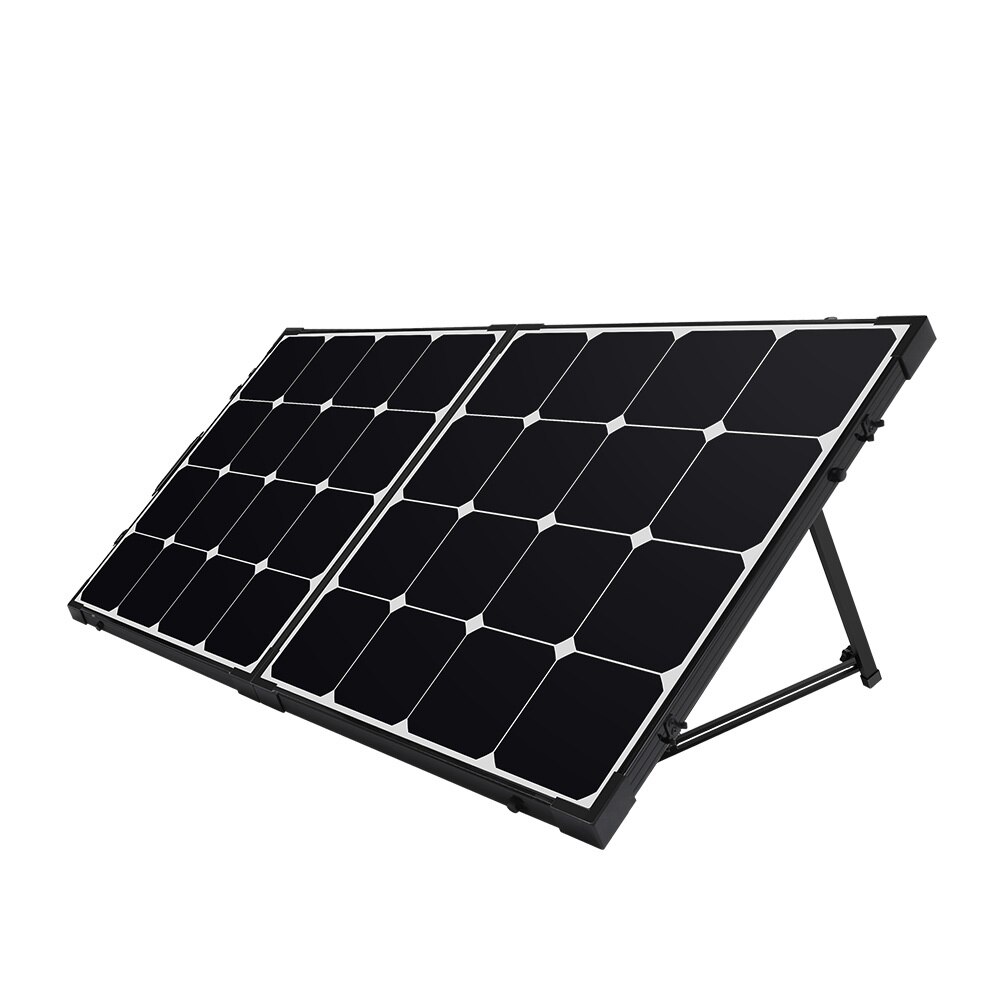

This portable solar panel is perfect for the adventurous traveler, providing both convenience and dependability when venturing off the grid. The Renogy 100W Eclipse Solar Suitcase comes with two 50W Monocrystalline Solar Panels, one 15in set of wires with Solar connectors, and one protective soft case for safe portability. This unit weighs a mere 19.40 lbs.With its adjustable aluminum stand, latches, and heavy duty handle, this 100W Eclipse Solar Suitcase will change the way the world looks at portable power.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or email email@example.com.
- Excellent performance in low-light environments.

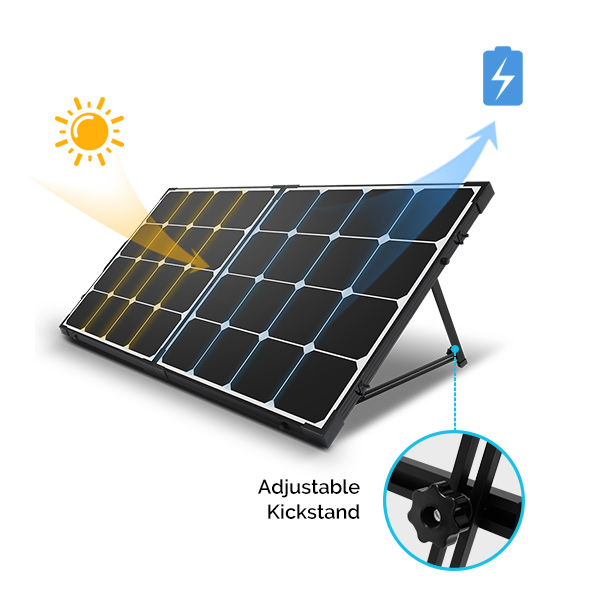

- Adjustable corrosion resistant aluminum stand, heavy duty handle and latches for longevity.
- Protective casing.
- Designed for expansion, you can add panels to the the system based on your available space.
Renogy 100 Watt Ecplise Solar Suitcase w/o Controller
|Renogy 100 Watt Eclipse Solar Suitcase (w/o Controller)|| |
|Maximum Power at STC: 100W
||Open-Circuit Voltage (Voc): 21.6V
|Maximum Operating Voltage (Vmp): 17.6V
||Short-Circuit Current (Isc): 6.10A
|Maximum Operating Current (Imp): 5.68A
||Maximum System Voltage: 600VDC(UL)

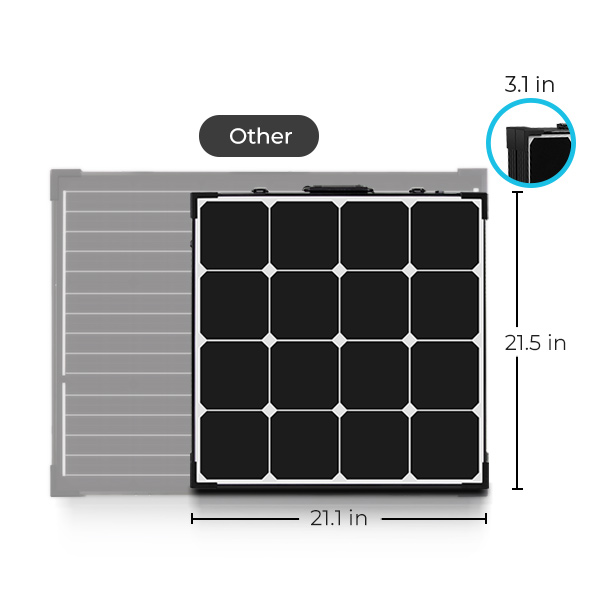

||Folded Dimension: 21.1 x 21.5 x 3.1 inches
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
3-year material and workmanship warranty
||1-year material warranty
1.What do I need to complete my off-grid solar power system ?
A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3. Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
4. How should I connect solar panels in my electrical circuit (series vs parallel)
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
5. How many solar panels do I need ?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watt, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
