100 Watt Eclipse Monocrystalline Solar Suitcase w/ Controller
KEY FEATURES
【SMALLEST IN SIZE】
The Renogy Eclipse solar panels using SunPower solar cells, allows higher efficiency and minimized panel size, provides more flexibility for outdoor and off-grid use, easy to carry, store and set up.
【Plug and play solar kit 】
Complete kit includes a 100W solar suitcase, a 20A waterproof charge controller, and alligator clips. Compatible with multiple kinds of 12V batteries, easily add to your existing system.
【Incomparable efficiency】
Renogy Eclipse solar panels using SunPower solar cells with high efficiency of up to 24% compared with the majority of solar panels falling in the 18% to 21% efficiency range.
【Safety guarantee】
Advanced smart PWM technology charge controller with multiple protections, ensure charging efficiency and safety.
【Reailable quality】
Coming with a premium rugged canvas protective case, low iron-tempered glass contributes to the added durability and long-lasting quality of the panel.



The Renogy 100W Eclipse Solar Suitcase is a convenient and portable renewable energy solution. The Renogy 100 Watt 12 Volt Eclipse Solar Suitcase is an entire solar power system developed into one compact suitcase. Built with the most efficient monocrystalline solar cells that Renogy has to offer, this power unit weighs a mere 20.3 pounds. This lightweight suitcase includes two 50 Watt Monocrystalline Solar Panels, one 20 Amp Voyager Charge Controller with an LCD Screen for power regulation, one tray cable kit with alligator clips for easy battery connection, and a protective casing for safe portability. The Eclipse Suitcase is perfect for customers looking to build a solar power system that is not permenantely installed to a stucture and rather portable. Equipped with a carrying handle, sturdy fold out legs that allow for varying degrees of tilt, and superior latches, this suitcase is a great off-grid companion!

100 Watt Eclipse Monocrystalline Solar Suitcase with controller
Minimized Size Easy for Carrying and Storage

The Renogy Eclipse panel has a smaller size after folding than most of the 100W solar suitcases in the market,which allowing it can be carried and set up anywhere, and without difficulty to store in limited spaces, such as in your RV or tent.

100 Watt Eclipse Monocrystalline Solar Suitcase with controller
Multi-Protection Ensure System Safety

With utilizing smart PWM technology, the Voyager controller provides efficient, stable, and safe charging. Multiple protection keeps your battery and system always been fully protected.

100 Watt Eclipse Monocrystalline Solar Suitcase with controller
Compatible with Your Existing System

The Voyager charge controller is compatible with multiple battery types, that can be perfectly integrated as part of your existed solar system.  IP65 rated waterproof design applicable to a wider range of scenarios, such as marine, yacht, fishing, etc.

100 Watt Eclipse Monocrystalline Solar Suitcase with controller

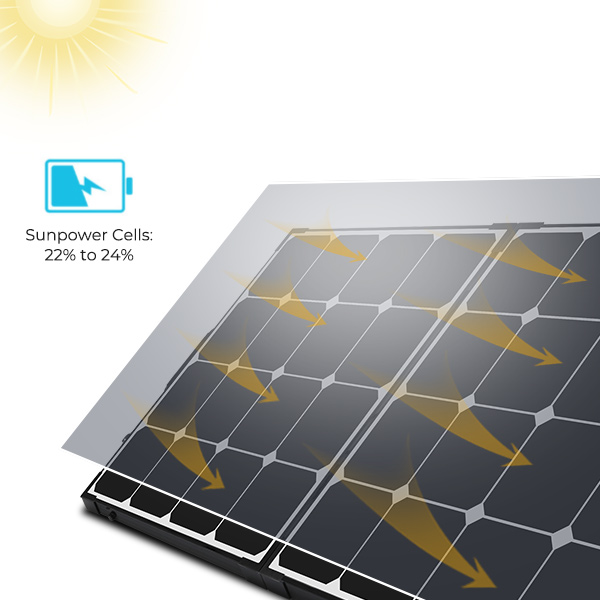

Incomparable Conversion Rate

The Eclipse Suitcase uses high-efficiency SunPower solar cells that help increase module efficiency with a 22.2% to 24% efficiency range. By comparison, regular Monocrystalline panels efficiency around 21%, and Polycrystalline panels around 18.7%.

100 Watt Eclipse Monocrystalline Solar Suitcase with controller

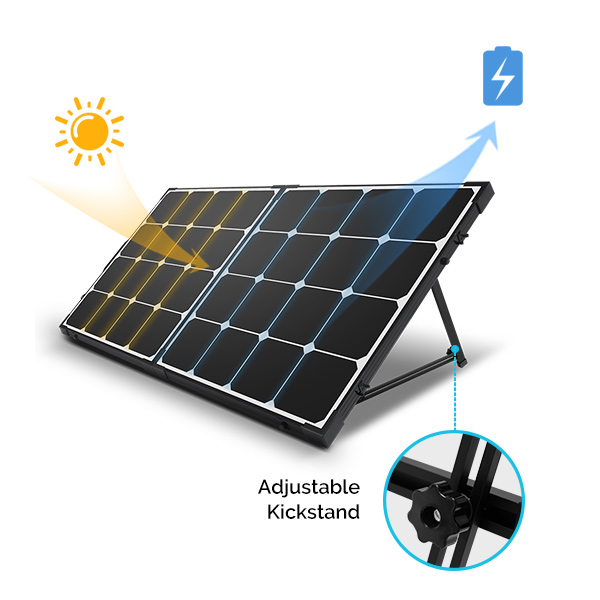

More Energy and Flexibility

Adjustable kickstands for fast setup and bring more flexibility for use, allow you always get the best sunshine only need to change in small angles. Empower your outdoor adventures with more flexibility and possibility.

100 Watt Eclipse Monocrystalline Solar Suitcase with controller
Excellent Performance in Low-light Environments

Bypass Diodes installed inside the junction boxes avoid the effects caused by hot spots, minimize power drop caused by shade ensure excellent performance even in low-light environments, ensure product safety during use.

NOTE
  • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK


Package Includes



Renogy 100 Watt Eclipse Solar Suitcase

Renogy 100W Foldable Solar Suitcase

1 x

20A Voyager Charge Controller

Renogy 20A PWM Charge Controller

1 x

Solar Connectors to Alligator Clips w/ Fuse

Solar Connectors to Alligator Clips w/ Fuse

1 x



Specifications
Maximum Power at STC: 100W Cell Efficiency: 22.8%
Optimum Operating Voltage (Vmp): 17.6V Open-Circuit Voltage (Voc): 21.6V
Optimum Operating Current (Imp): 5.68A Short-Circuit Current (Isc): 6.10A
Operating Temperature: 45 ± 2 °C Maximum Series Fuse Rating: 20A
Maximum System Voltage: 600VCD(UL) Weight: 19.4lb
Maximum AWG Size Range (MC4): 20A Dimensions: 21.1 x 21.5 x 3.1 in
Material and workmanship warranty: 3 years Performance Warranty:5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
RENOGY 20A VOYAGER CHARGE CONTROLLER
Nominal Voltage: 12 VDC Self-consumption: ≤8mA
Rated Charge Current: 20A Operating Temperature: -40°F to 140°F
Max. PV Input Voltage:26 VDC Dimensions: 6.38 x 3.82 x 1.34 inches
Grounding: Common Negative Weight Rating: 0.88 lbs


1. Which kind of extension cord I should purchase with this panel for more mobility from my RV?

The Renogy Solar Panel Extension Cable will be able to make more space between your solar panels and the charge controller. There is multiple size choice, please choose the same size of cable for extension. And please also realize that the longer the extension, the greater the line loss. A bigger gauge will be required for longer runs.
2. Can I add more solar panels with the suitcase to expand my system?

This solar suitcase is designed for expansion, additional panels are added to the system available based on your needs and space. We suggest you add the same solar suitcase for expansion. And please also pay attention to the controller may also need to be upgraded when you extend your system, the kit original comes with a 20A Voyager charge controller, divide the total power by the battery system voltage, the current value get can be used as a reference for controller selection.
3. Are these monocrystallin or polycrystallin panels?

The Eclipse suitcase with 2 pcs 50W solar panels use Sunpower Solar Cells, which have a higher efficiency than regular monocrystalline solar cells. The Sunpower Solar Cells with a 22.2% to 24% efficiency range. By comparison, regular Monocrystalline panels efficiency around 21%, and Polycrystalline panels around 18.7%.
4. Is the Eclipse solar panel better than normal monocrystalline panels? What's the difference between them?

The Eclipse uses Sunpower Soalr Cells which has a higher efficiency rate than the normal Monocrystalline. The Eclipse panel includes a tempered glass layer that contributes to the added durability and long-lasting quality of the panel. The Eclipse panel is small in height and size, which makes it more flexible, enabling it to store and install in where space is at a premium, such as in an RV.
5. What type of batteries can be used with the kit?

Battery type compatibility depends on the charge controller specified compatible battery type. This solar kit comes with a Renogy Voyager 20A PWM waterproof charge controller. It supports Gel, AGM, Flooded, and Lithium batteries. Still, please set the correct battery type once it is installed and if a Lithium battery is connected, please manually set the system voltage due to the corresponding battery voltage. It also comes with a Lithium activation feature.
6. How much power this solar kit can provide me?

The power produced by solar panels will depend on how much sunlight can get. The ideal output for this kit will be 500Wh every day(Calculated based on 100Wx5h expected sunlight availability).
7. Can I use this suitcase to charging my 120v receptacles directly?

The suitcase is not able to charging 120V power receptacles directly. Plus a 12v battery and inverter would give 120v output you would want. The panel would recharge the battery, the battery will storage the power, and the inverter would be able to supply the 120v power that you need.
8. Why is my solar panel underproducing?

Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output. This is a portable suitcase, you may try to move it in place or adjust the kickstands angels to get better sunshine. The ideal output of it will be around 500 Watt-hours per day (Calculated based on 100Wx5h expected sunlight availability).
More questions about your off-grid power system? Learn more from Renogy Learning Center!


warranty



Please click the links below to download the manuals:
20A Voyager PWM Charge Controller
